Kverneland
High quality special steel Borodur®
The most common moldboard plows are the Kverneland plows. Kverneland has a wide range of moldboard plows with numerous models of moldboards and plowshares that are suitable for the tillage work that has to be done. Furthermore, Bellota has the widest range that can be adapted to the Kverneland moldboard plow, and they are totally adaptable to the original moldboard plows.
1460
O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
KK073088 | 1460 D | 10 | 3450 | 200 | 357 | 240 | 1199B | M16 |
KK073089 | 1460 I | 10 | 3450 | 200 | 357 | 240 | 1199B | M16 |
D Right
F Articles manufactured upon order
Fits in Kverneland 6,7,8,9 / 12,15,19 / 28 / Ecomat
1460-B
O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
KK084320 | 1460 BD | 8 | 2900 | 200 | 390 | 216 | 1199B | M4-M16 |
KK084321 | 1460 BI | 8 | 2900 | 200 | 390 | 216 | 1199B | M4-M16 |
Fits in Kverneland 6,7,8,9 / 12,15,19 / 28 / Ecomat
1464
O. Ref. | Ref. | C | Grs. | B | A | B | E |
KK073091 | 1464 D | 4,5 | 830 | 500 | 283 | 145 | 1199D |
KK073092 | 1464 I | 4,5 | 830 | 500 | 283 | 145 | 1199D |
D Right
F Articles manufactured upon order
Fits in all Kverneland models except Ecomat.
1829
O. Ref. | Ref. | C | Grs. | B | A | B | A | E | M |
KK053387 | 1829 D | 8 | 1900 | 432 | 365 | 100 | 12 | 1199B | M12 |
KK063388 | 1829 I | 8 | 1900 | 432 | 365 | 100 | 12 | 1199B | M12 |
D Right
F Articles manufactured upon order
Fits in Kverneland 1,3,5 / 6,7,8 / 12,15,19 / 28
1857
O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
KK073300 | 1857 D | 8 | 3285 | 150 | 460 | 150 | 1199B | M12 |
KK073301 | 1857 I | 8 | 3285 | 150 | 460 | 150 | 1199B | M12 |
D Right
F Articles manufactured upon order
Fits in Kverneland 1,3,5 / 6,7,8 / 12,15,19 / 30
1860
O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
KK073310 | 1860 D | 10 | 2150 | 300 | 220 | 200 | 1199B | M12 |
KK073311 | 1860 I | 10 | 2150 | 300 | 220 | 200 | 1199B | M12 |
D Right
F Articles manufactured upon order
Fits in Kverneland 1,3,5 / 6,7,8,9 / 12,15,19 / 28 / 30
2357
O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
KK063601A | 2357 | 12 | 3150 | 300 | 214 | 180 | 1199D | M16 |
Fits in Kverneland 1,3,5 / 6,7,8,9 / 12,15,19 / 30 / Hydrein
2327
2327-A
O. Ref. | Ref. | C | Grs. | B | A | B | E | M | D |
KK073608 | 2327 | 11 | 5250 | 150 | 566 | 170 | 1199C | M14 | |
KK073608 | 2327-A | 11 | 5200 | 150 | 566 | 170 | 1199C | M14 | 50 |
Fits in Kverneland 6,7,8,9 / 12,15,19 / 28 / 30
2327 P
Ref. | C | Grs. | B | A | B | E | M |
2327 PROTECTOR | 12 | 4200 | 200 | 566 | 90 | 1199C | M14 |
Protects the original part 2327
2328
2328-A
O. Ref. | Ref. | C | Grs. | B | A | B | E | M | D |
KK073609 | 2328 | 11 | 7900 | 100 | 746 | 170 | 1199C | M14 | |
KK073609 | 2328-A | 11 | 7850 | 100 | 746 | 170 | 1199C | M14 | 50 |
Fits in Kverneland 6,7,8,9 / 12,15,19 / 28 / 30
2328 P
Ref. | C | Grs. | B | A | B | E | M |
2328 PROTECTOR | 12 | 5750 | 150 | 746 | 90 | 1199C | M14 |
Protects the original part 2328
2319
O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
KK063600A | 2319 | 12 | 1400 | 500 | 240 | 70 | 1199D | M12 |
Fits in all Kverneland models except Ecomat.
2319 A1
O. Ref. | Ref. | C | Grs. | B | A | B | E | M |
KK073614 | 2319-A1 | 12 | 1000 | 800 | 145 | 80 | 1199C | M14 |
Fits in Kverneland 6,7,8,9 / 12,15,19 / 28 / 30

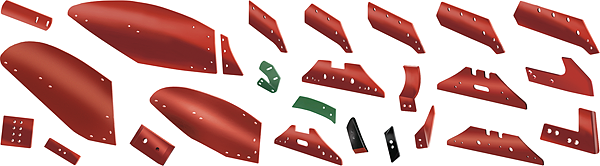

KVERNELAND 12,15,19
1365-1365CP
O. Ref. | Ref. | C | Grs. | B | A | B | C | A | E | M |
KK053090 | 1365-D CP DURATOP | 20 | 2100 | 500 | 230 | 70 | 40 | 1199D | M12 | |
KK063090 | 1365-I CP DURATOP | 20 | 2100 | 500 | 230 | 70 | 40 | 1199D | M12 |
Fits all Kverneland models.
More models.
CP DURATOP: Point with tungsten carbide
1434-12
1434-14
1434-16
1434-18
O. Ref. | Ref. | C | Grs. | B | A | B | C | E | M | D |
KK073054 | 1434-14 D | 11 | 5060 | 150 | 484 | 144 | 370 | 1199C | M14 | 100 |
KK073055 | 1434-14 I | 11 | 5060 | 150 | 484 | 144 | 370 | 1199C | M14 | 100 |
KK073056 | 1434-16 D | 11 | 5260 | 150 | 549 | 144 | 380 | 1199C | M14 | |
KK073057 | 1434-16 I | 11 | 5260 | 150 | 549 | 144 | 380 | 1199C | M14 | |
KK073080 | 1434-18 D | 11 | 6240 | 100 | 635 | 145 | 465 | 1199C | M14 | |
KK073081 | 1434-18 I | 11 | 6240 | 100 | 635 | 145 | 465 | 1199C | M14 |
D Right
D Articles manufactured upon order
Fits in Kverneland 6,7,8,9 / 30
1712
O. Ref. | Ref. | C | Grs. | A | B | C | E | M | D |
KK073224-Nº15 | 1712 D CA | 8 | 18820 | 825 | 540 | 200 | 1199B | M12 | 20 |
KK073225-Nº15 | 1712 I CA | 8 | 18820 | 825 | 540 | 200 | 1199B | M12 | 20 |
D Right
D Articles manufactured upon order
1834
1834
1834T
O. Ref. | Ref. | C | Grs. | A | B | C | E | M | D |
KK073290-Nº9 | 1834 D BO | 8 | 20700 | 980 | 440 | 280 | 1199B | M12 | |
KK073290-Nº9 | 1834 D TX | 7 | 18100 | 980 | 440 | 280 | 1199B | M12 | 18 |
KK073290-Nº9 | 1834 D C | 8 | 20700 | 980 | 440 | 280 | 1199B | M12 | 18 |
KK073290-Nº9 | 1834 D C P | 8 | 20700 | 980 | 440 | 280 | 1199B | M12 | 30 |
KK073291-Nº9 | 1834 I BO | 8 | 20700 | 980 | 440 | 280 | 1199B | M12 | |
KK073291-Nº9 | 1834 I TX | 7 | 18100 | 980 | 440 | 280 | 1199B | M12 | 18 |
KK073291-Nº9 | 1834 I C | 8 | 20700 | 980 | 440 | 280 | 1199B | M12 | 18 |
KK073291-Nº9 | 1834 I C P | 8 | 20700 | 980 | 440 | 280 | 1199B | M12 | 30 |
D Right
D Articles manufactured upon order
Fits in Kverneland 6,7,8,9 / 12,15,19
BO: Boro Steel
TX: Triplex Steel
C: Case Hardened
1834 P
Ref. | C | Grs. | B | A | B | C | E | M |
1834 D PROTECTOR | 7 | 2670 | 330 | 217 | 363 | 1199B | M12 | |
1834 I PROTECTOR | 7 | 2670 | 330 | 217 | 363 | 1199B | M12 |
D Right
F Articles manufactured upon order
Fits with 1834 and 1849-12
1365 • 1375 • 1803-A • 1804 • 1464 • 1829 • 1826 • 1857 • 1860 • 2294 • 2295 • 2296 • 2297 • 2357 • 2319 • 1374 • 1797 • 1834 • 1874 • 1875 • CA1875 • 1798 • 1798 P • 1835 • 1835 P • 1459 • 1460 • 1460B • 2327 • 2327 P • 2328 • 2328 P • 2319-A1 • 1434 • 1712 • 1834 P • 1710 • 1849 • 1790 • 1726 • 1727 • 1742 • 2381 • 1390 • 2292 • 2293 • 1386 • 1391 • 1394 • 1705 • 1818 • 1819 • 1983-16/18 4 R55 Y5 • 1990-20 5 R55 Y5 • 1983-18/20 5 M R55 YV • 1983-18 5 ET • 2288 • 2289
